Comperj
COUNTRY
CLIENT
DESCRIPTION
Utility plant of the Rio de Janeiro petrochemical complex situated at Itaboraí – Rio de Janeiro.

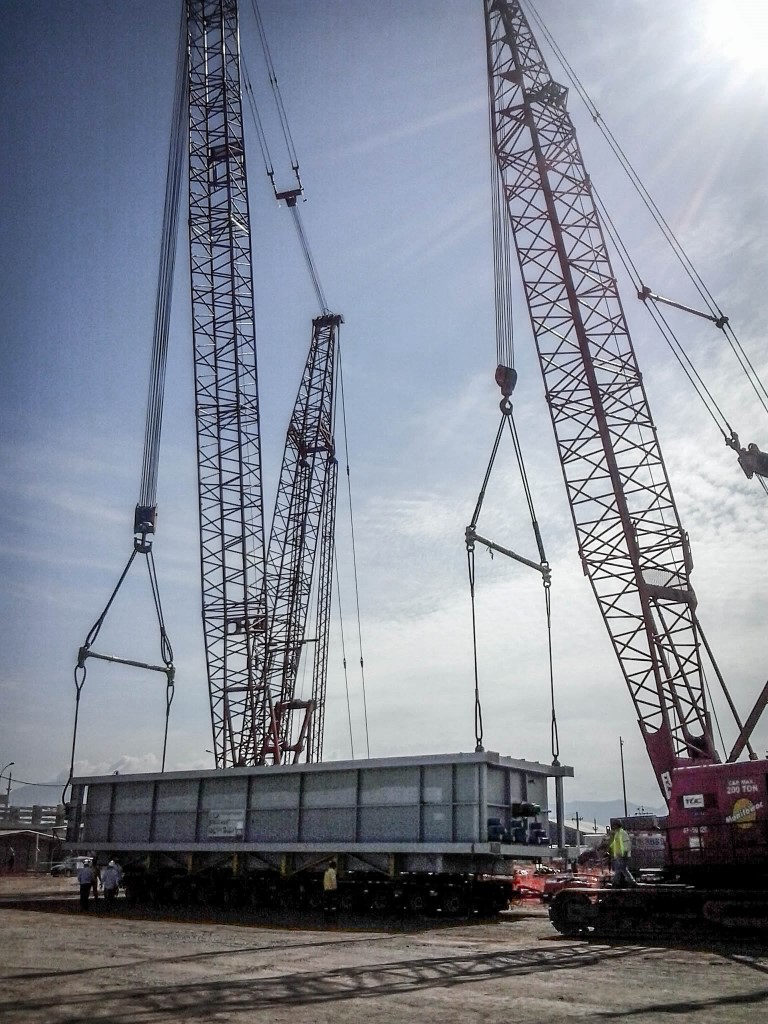

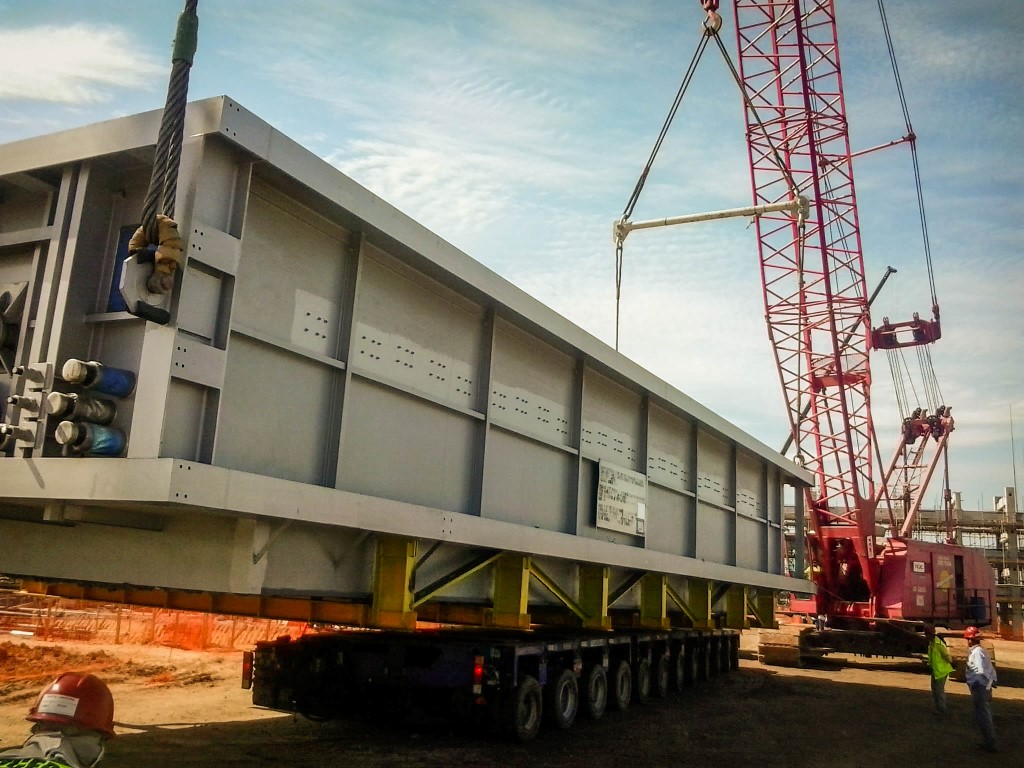

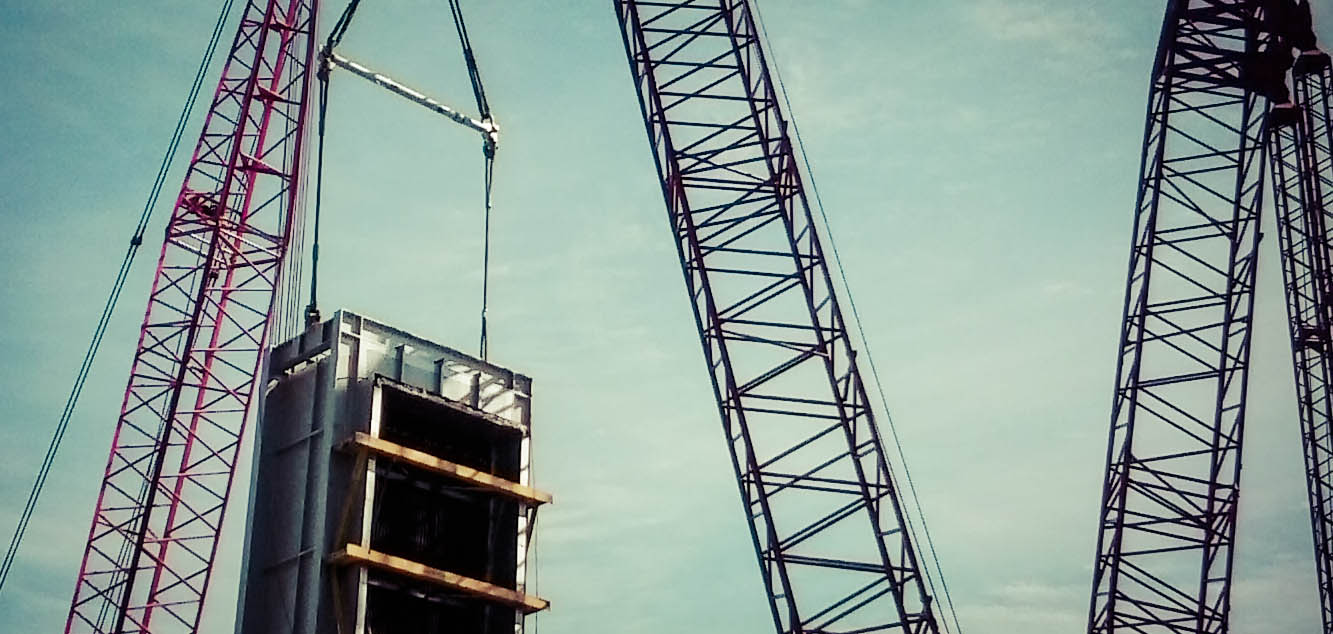

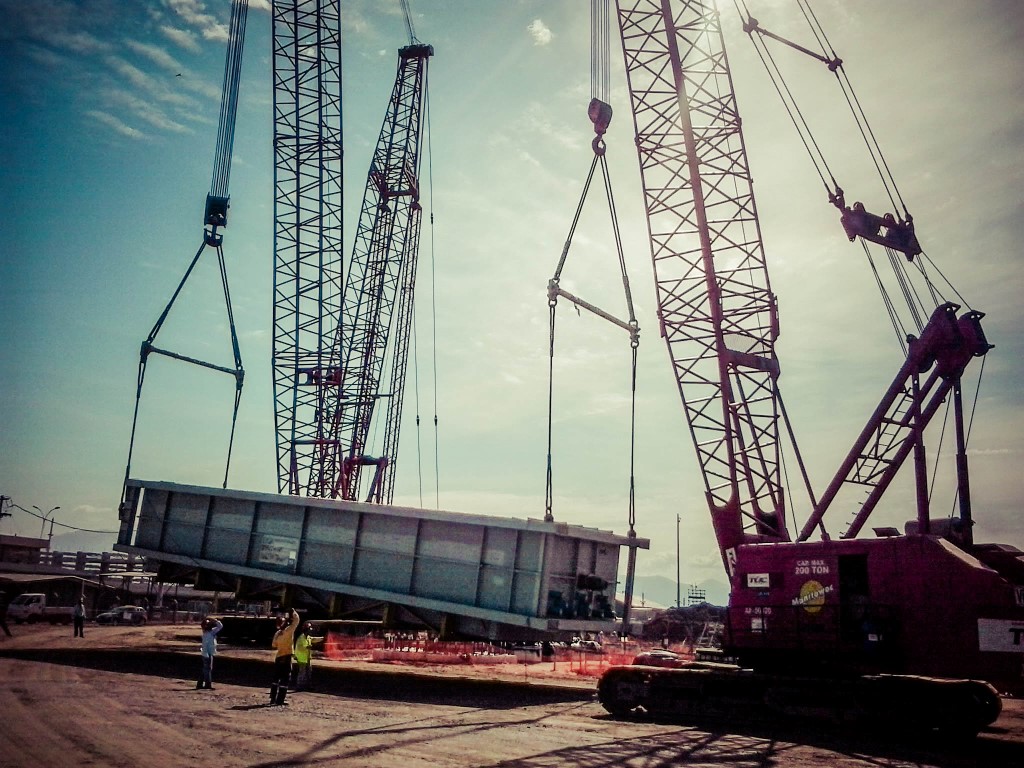

Emasa Engineering acted as consultants for the structural and rigging engineering for the assembly of the steam generation and distribution, composed of two gas boilers and two heat recovering steam generators (HRSG), two gas turbines, two steam turbines and four generators.

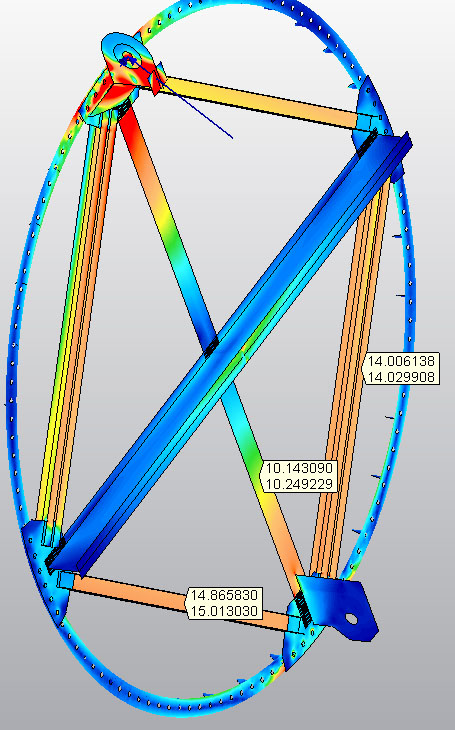

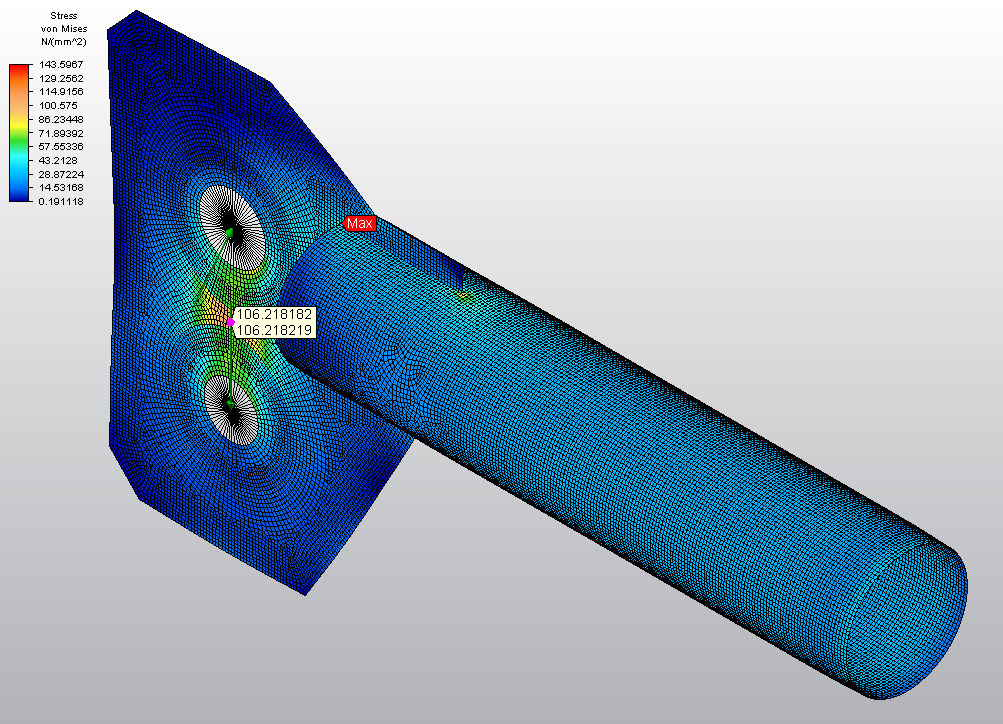

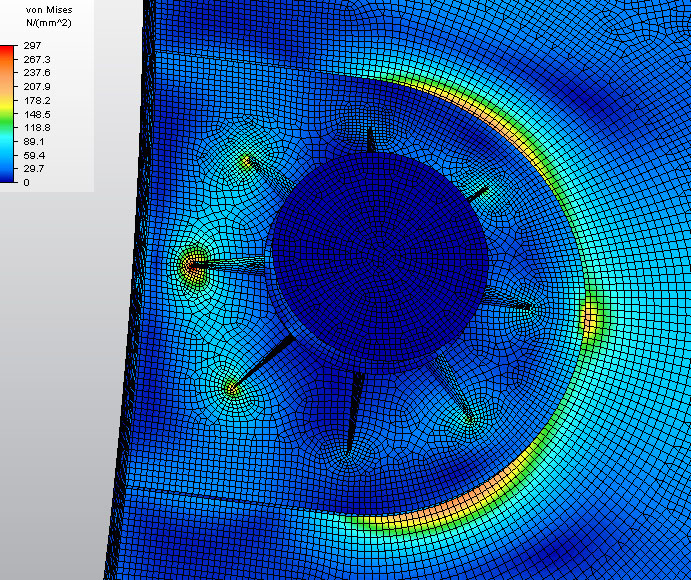

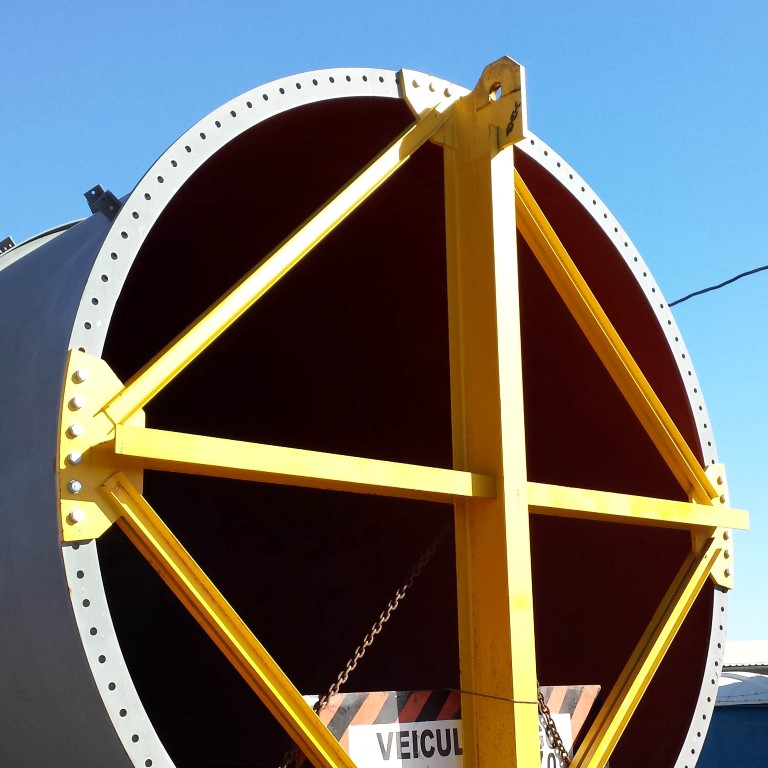

The planned and validated riggings comprised chimneys, panels and modules of the boiler and large ducts. Emasa Engineering's works included the structural verificaiton of the elements to be rigged, the peer review of the lifting lugs and spreader beams (performed using finite element analysis) and the design of rigging plans for the operations.
Rigging devices were also designed for the rigging of large pre-cast concrete parts that composed the channels of water treatment stations.
