Ethylene XXI
COUNTRY
CLIENT
DESCRIPTION
Steel structure modularization and equipment verification of up to 900Tons.

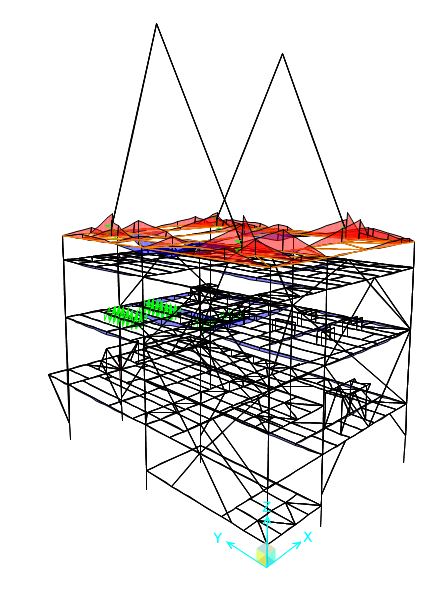

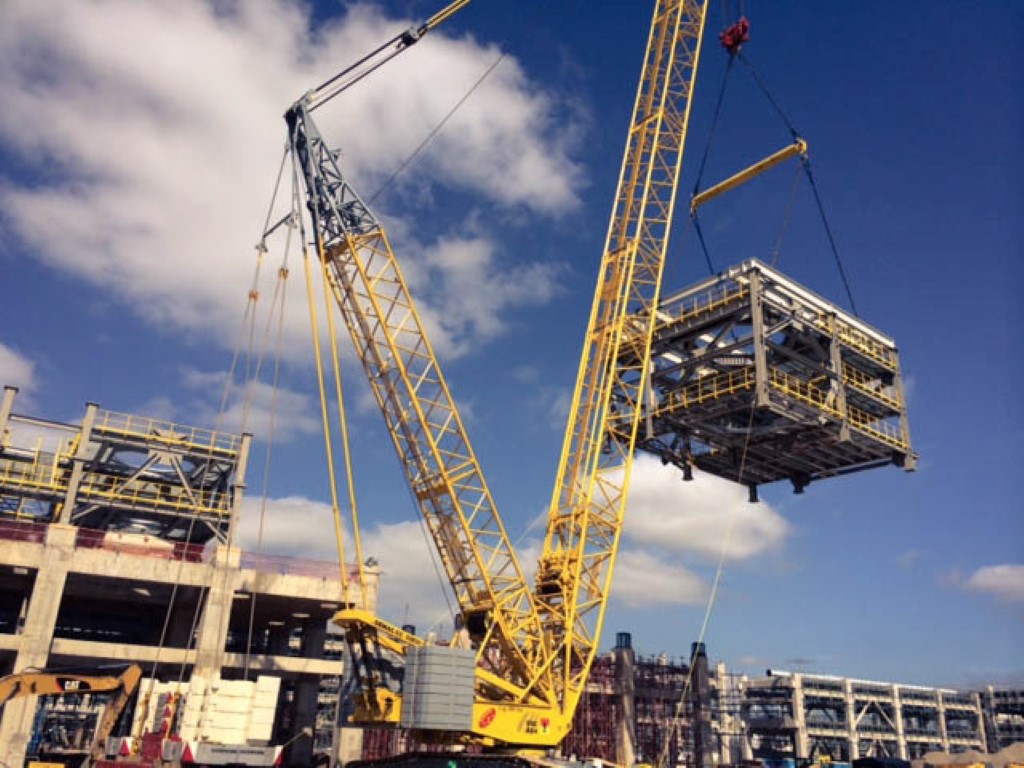

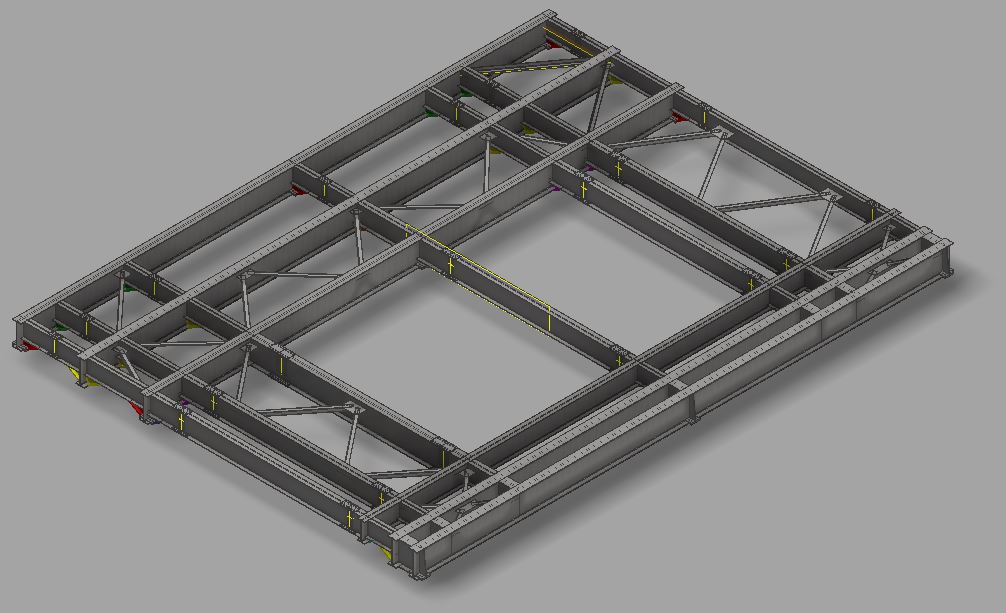

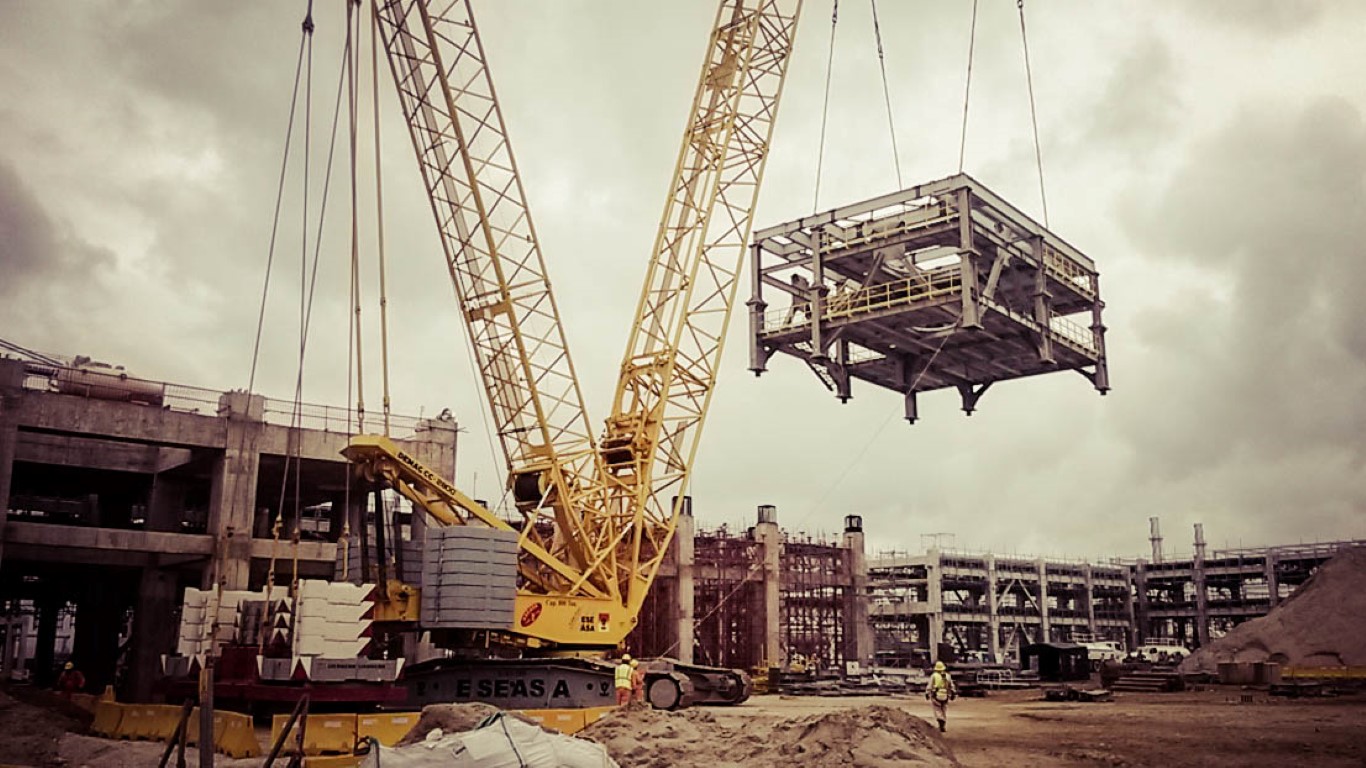

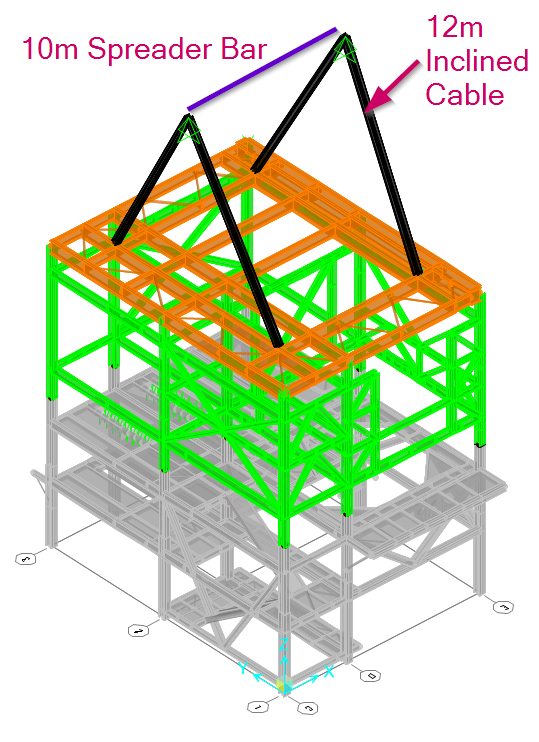

Emasa Engineering performed erection engineering studies for the assembly of steel buildings of about 70m (230ft) height for the HDPE reactors. The structure was divided in 6 modules weighing between 150 to 250 Tons, built on temporary foundations at ground level and then rigged to its final position. The modularized strategy brought documented positive results in schedule and safety.

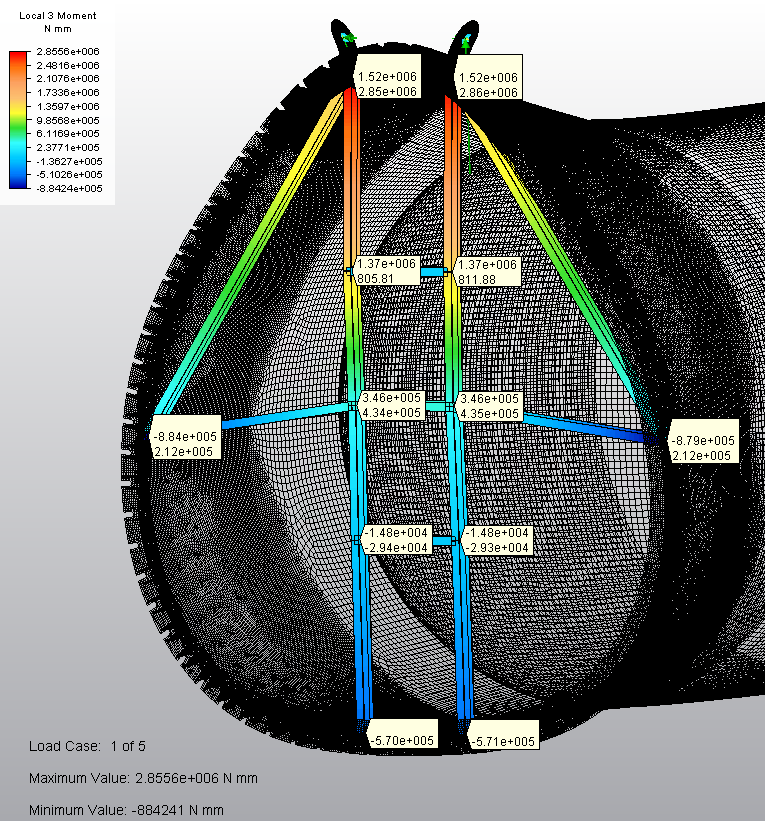

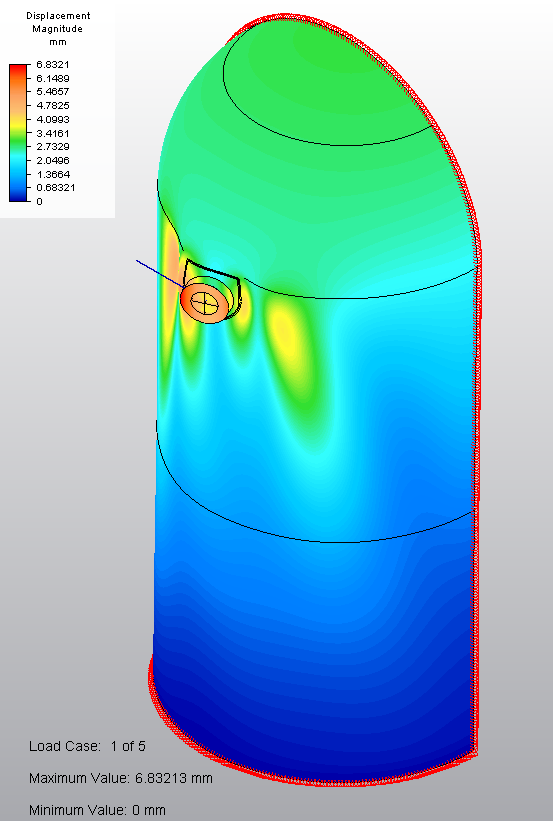

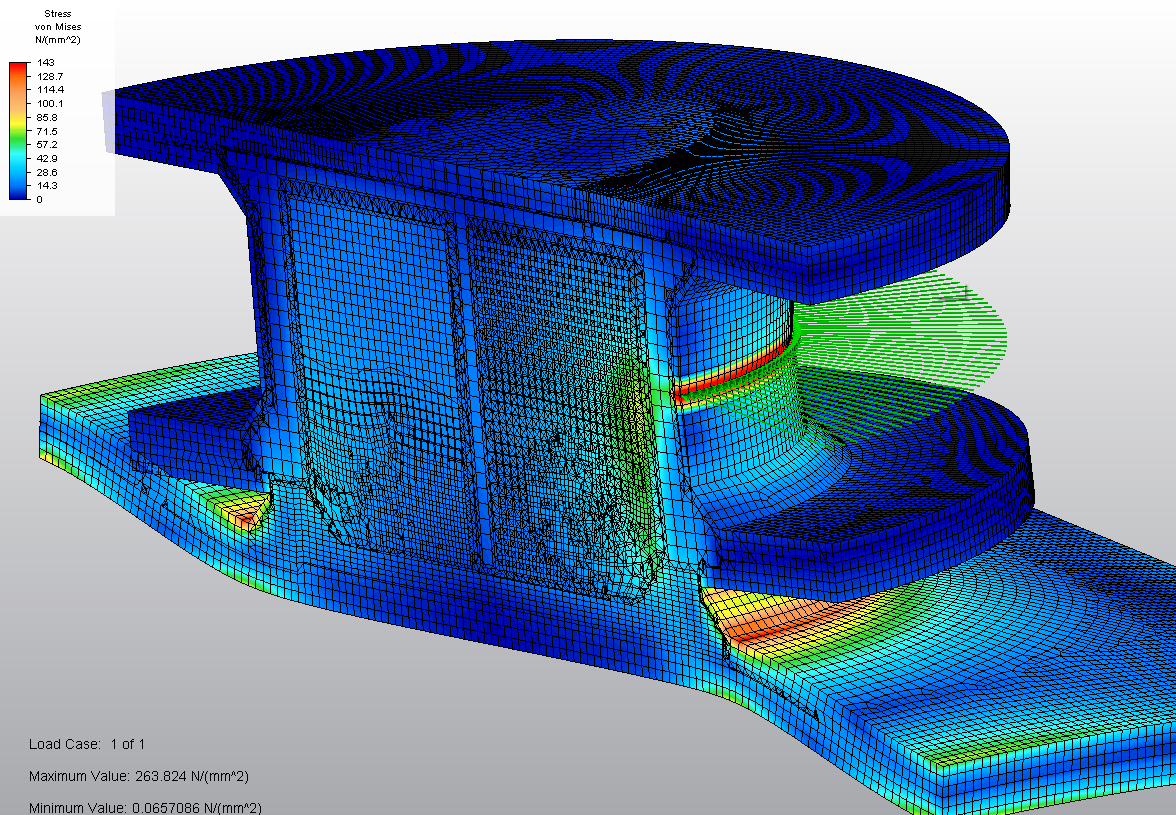

General rigging engineering studies for the cracker tower, reactors, steel bridges, pre-cast modules were performed, along with the peer-review of project quality of steel buildings.
