Corinthians Arena
COUNTRY
CLIENT
DESCRIPTION
Rigging and structural verifications of the roof and its modules weighing up to 400Tons.
Emasa Engineering worked intensely during all the construction phases, starting with activities related to the project certification and calculation of all the connections of the structure.

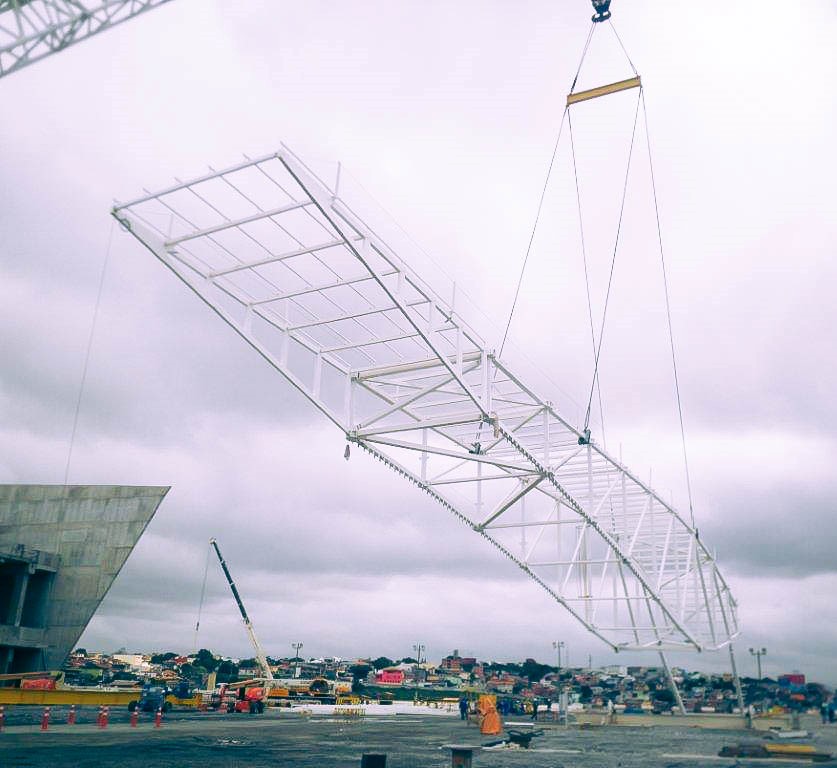

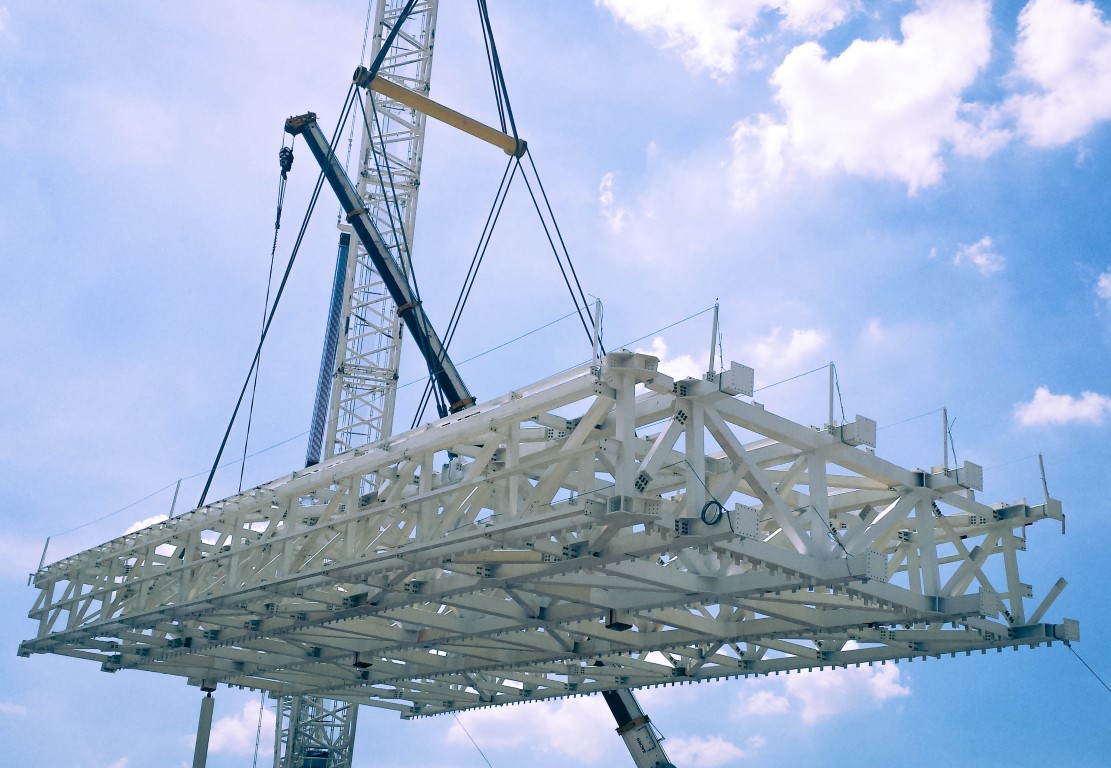

After that, Emasa Engineering designed and performed structural verifications necessary for: the rigging of the modules (comprising 40 different types of modules, with weight varying from 100 to 400 Tons); salvage of a fallen module (crane collapsed due to reasons not related to Emasa's works) and finalized with active participation on the complex operation for the removal of the temporary towers of the structure.
GALLERY
 (Medium).jpg)
 (Medium).jpg)
 (Medium).jpg)
 (Medium).jpg)
 (Medium).jpg)
 (Medium).jpg)
 (Medium).png)
 (Medium).png)
 (Medium).png)
